14PI-83" x 20 HD Tandem Axle Pipe Top Utility Trailer
VIN: 073965
Call for Quote
(409) 385-0409Silsbee, TX
Facing down heavy-duty, demanding, and challenging loads? Then its time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer - a heavy-duty pipe-top equipment trailer thats specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, its a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
14PI-83" x 20 HD Tandem Axle Pipe Top Utility Trailer
Facing down heavy-duty, demanding, and challenging loads? Then its time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer - a heavy-duty pipe-top equipment trailer thats specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, its a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
- Axle Config:
- Tandem
- Max Payload:
- 10960 lbs.
- External Width:
- 83"
- External Length:
- 20'
- Weight:
- 3040
- Hitch Type:
- Bumper Pull
- Category:
- Utility Trailers
- Year:
- 2019
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 14000
- Capacity:
- 10960
Features/Specifications
Features
| Axle | (2) 7,000#, Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | 12,000# Drop Leg Jack-Side Wind |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 5" x 3" x 5/16" Angle |
| Wheel | 16" x 6"; Heavy Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel Fold Back/Wrap |
| Coupler | Adjustable 2-5/16" 14,000# Cast |
| Fenders | 9" x 72" Double Broke Diamond Plate w/Back |
| G.V.W.R. | 14,000# |
|---|---|
| Top Rail | 3" x 3" Square Tubing |
| Uprights | 15" Tall - 3" x 2" x 3/16" Angle |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Slipper Spring w/Equalizer |
| Crossmembers | 3" Channel on 16" Centers |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer
| Model | Description |
|---|---|
| 14PI-16 | 83" x 16' HD Tandem Axle Pipe Top Utility Trailer |
| 14PI-18 | 83" x 18' HD Tandem Axle Pipe Top Utility Trailer |
| 14PI-20 | 83" x 20' HD Tandem Axle Pipe Top Utility Trailer |

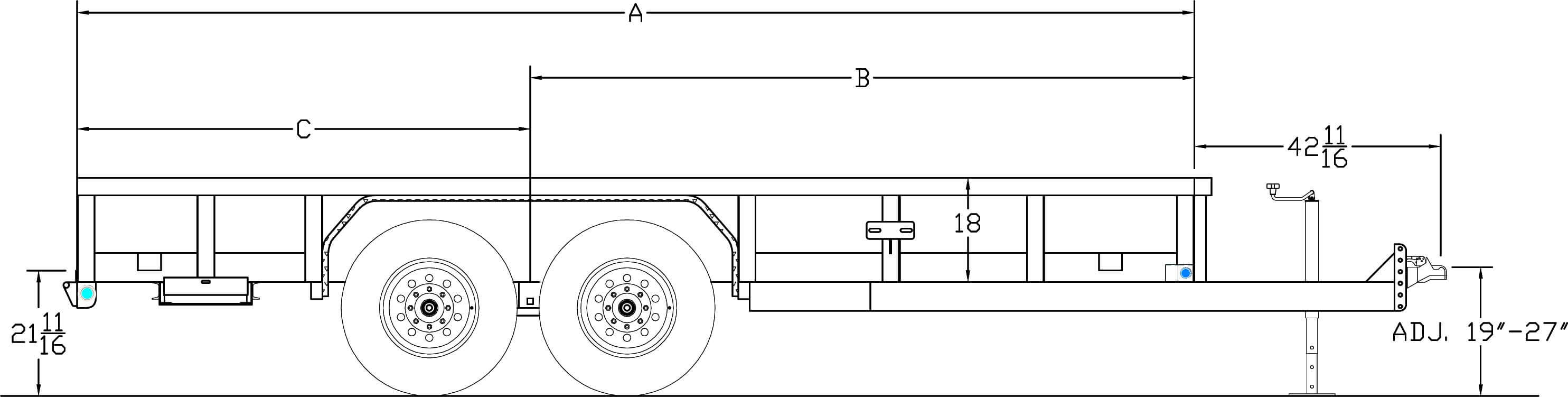

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138" | 102" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 2,740# | 11,260# | N/A |
| 18' | 2,890# | 11,110# | N/A |
| 20' | 3,040# | 10,960# | N/A |
Standard/Optional Equipment
Standard Equipment
- Stake Pockets on Outside Frame
- Adjustable 2-5/16" Demco EZ Latch Coupler
- Set-Back, 8,000# Drop Leg Jack
- Fold Back/Wrap Tongue (14 & Longer)
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes on All Hubs
- Cambered Axles
- Heavy Duty 3" Square Tube Top Rail
- Double Broke Diamond Plate Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Spare Tire Mount (Side)
- 4 Slide-In Ramps (Channel)
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Additional Stake Pockets |
| CARGO CONTROL | Bolt-On Landscape Box- Extra Wide (24" x 24" x 87") |
| COUPLER | Adjustable Pintle in Channel ILO Coupler |
| RAMPS | 4 Heavy Duty Integrated Ramp Gate w/Gas Shock Assist in Lieu of Ramps |
| RAMPS | 5 Heavy Duty Integrated Ramp Gate w/Gas Shock Assist in Lieu of Ramps (Split Gate) |
| RAMPS | 5 Stand up Ramps in Lieu of Slide In |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
